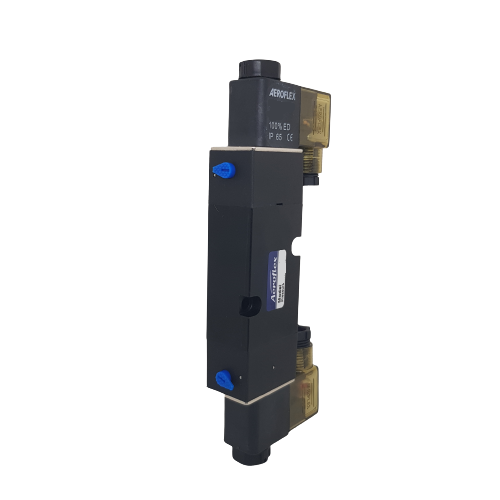

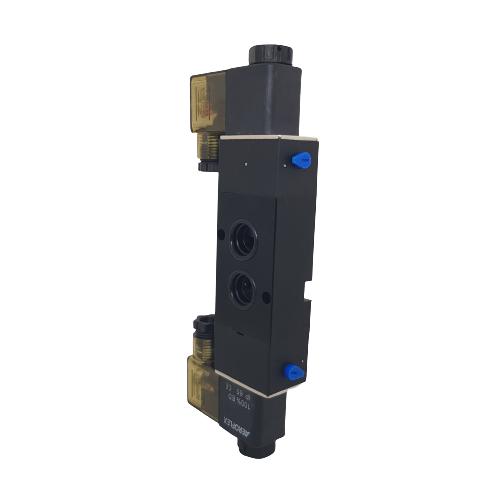

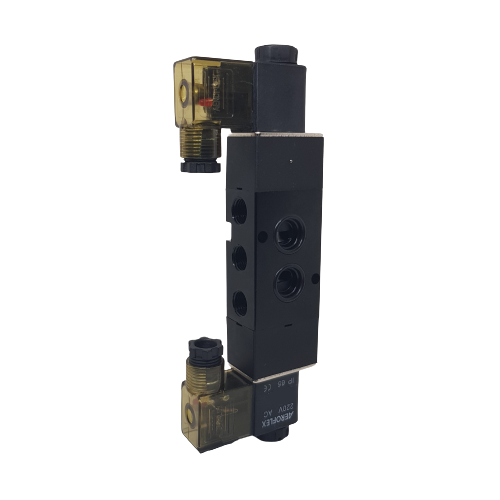

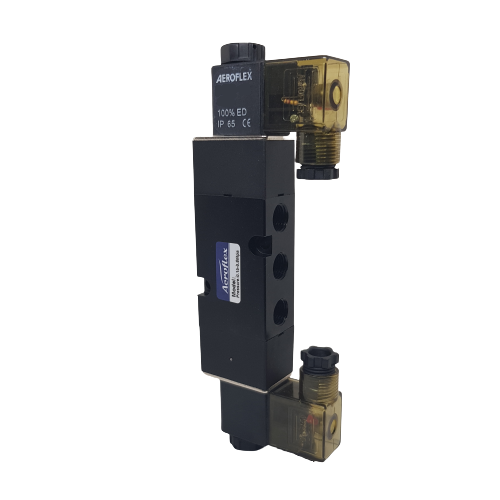

Aeroflex 1/4 Inch 5/2 Way 24V DC Namur Type Double Solenoid Valve with Spring Return - DV4-308N Pneumatic Namur Solenoid Valve 1/4" x 5/2 in 24V DC

Aeroflex 1/4 Inch 5/2 Way 24V DC Namur Type Double Solenoid Valve with Spring Return - DV4-308N Pneumatic Namur Solenoid Valve 1/4" x 5/2 in 24V DC

₹ 1373 (Incl. of all taxes)

₹ 1164 + ₹ 209 GST

MRP ₹1830

Select Options:

230v AC

24v DC

110v AC

12v DC

24v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	0.5 KG

Function	Namur Solenoid Valve
Design	Compact Body Spool Operated (Inner Guide Motion)
Type	5 Port 2 Position (5/2 Way)
Coil Actuation	Double Solenoid Coil
End Connection	Screwed Ends
Port Size	Available in 1/4" (Refer Technical Data)
Voltage	All Standard Voltages available (230v AC, 24v DC, 110v AC, 12v DC, 24v AC)
Media	Filtered Air
Working Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
Body Material	Aluminium Alloy
Seal	NBR
Temperature	5°C TO 50°C

Model	in & Exhaust Port Size	Out Port	Fluid	Actuation	Temperature	Effective Section Area mm²	Cv Value	Frequency	Shortest Excitation Time
DV4-308N	1/4" BSP	Namur	Air	Double Coil	5° to 50°C	25	1.39	Max.5 Cycles / Second	0.05s

Item Name	Namur Solenoid Valve
Design	Compact Body Spool Operated (Inner Guide Motion)
Type	5 Port 2 Position (5/2 Way)
Coil Actuation	Double Solenoid Coil Actuation
End Connection	Screwed Ends
Body Material	Aluminium Alloy
Working Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
