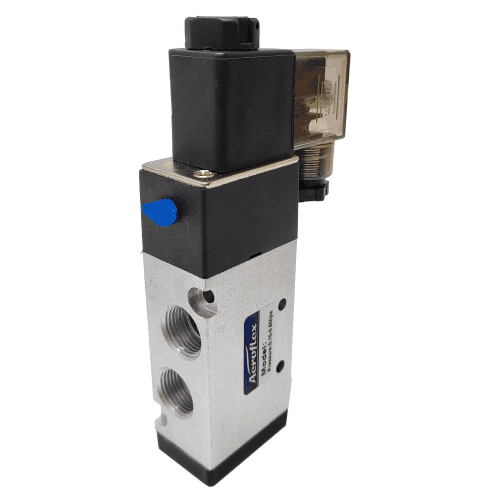

Aeroflex 1/2 Inch 5/2 Way 110V AC Single Solenoid Valve with Spring Return - V4-15 Pneumatic Solenoid Valve 1/2" x 5/2 in 110V AC

Aeroflex 1/2 Inch 5/2 Way 110V AC Single Solenoid Valve with Spring Return - V4-15 Pneumatic Solenoid Valve 1/2" x 5/2 in 110V AC

₹ 1316 (Incl. of all taxes)

₹ 1115 + ₹ 201 GST

MRP ₹1755

Select Options:

230v AC

24v DC

110v AC

12v DC

24v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	0.55 KG

Function	Solenoid Valve with Spring Return
Design	Compact Body Spool Operated (Inner Guide Motion)
Type	5 Port 2 Position (5/2 Way)
Coil Actuation	Single Solenoid Coil
End Connection	Screwed Ends
Port Size	Available in 1/8”, 1/4", 3/8” & 1/2" (Refer Technical Data)
Voltage	All Standard Voltages available (230v AC, 24v DC, 110v AC, 12v DC, 24v AC)
Media	Filtered Air
Working Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
Body Material	Aluminium Alloy
Seal	NBR
Temperature	5°C TO 50°C

Model	In-Out Port Size	Exhaust Port	Fluid	Temperature	Effective Section Area mm²	Cv Value	Frequency	Shortest Excitation Time
V4-15	1/2" BSP	1/2" BSP	Air	5° to 50°C	50	2.79	Max.5 Cycles / Second	0.05s

Item Name	Solenoid Valve with Spring Return
Design	Compact Body Spool Operated (Inner Guide Motion)
Type	5 Port 2 Position (5/2 Way)
Coil Actuation	Single Solenoid Coil Actuation
End Connection	Screwed Ends
Body Material	Aluminium Alloy
Working Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
