  • Aeroflex 1/2 Inch Pneumatic FR Unit W04-FST - Air Filter Regulator Combination Unit with Guard
Silverton Eco Paper
thumb1 thumb1 thumb1 thumb1 thumb1 thumb1

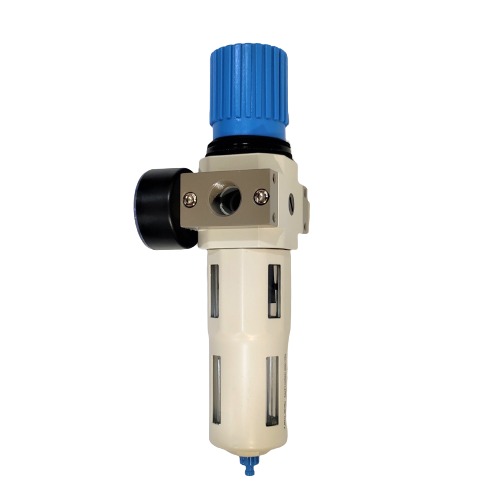

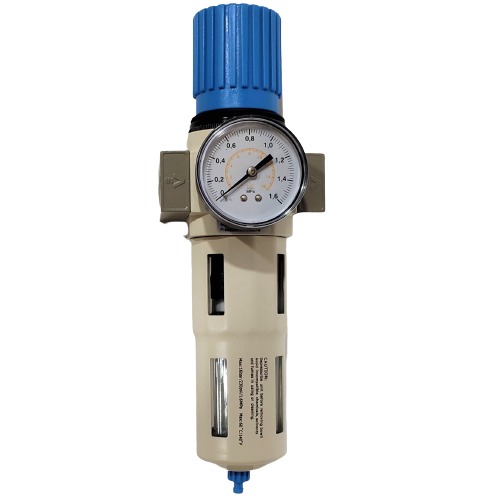

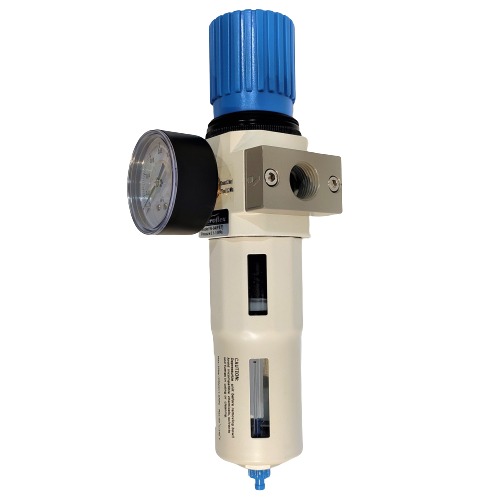

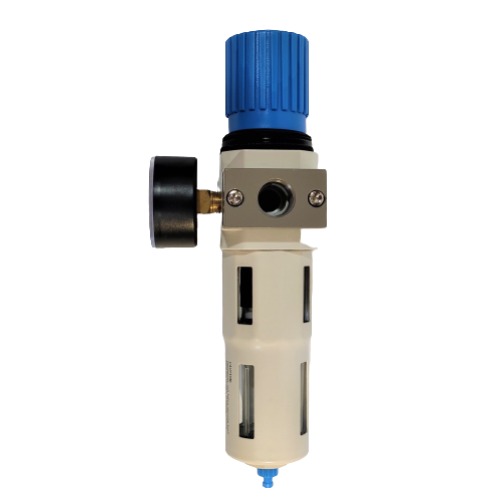

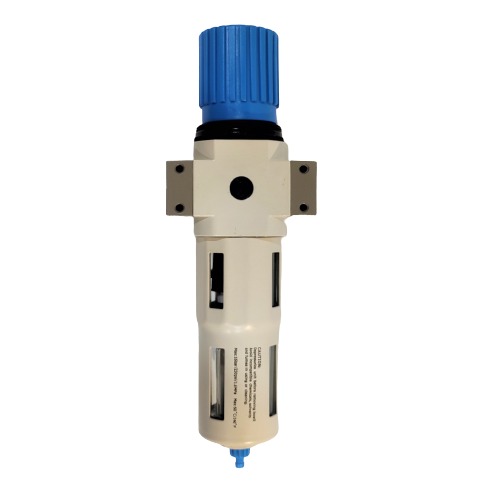

Aeroflex 1/2 Inch Pneumatic FR Unit W04-FST - Air Filter Regulator Combination Unit with Guard

Brand AEROFLEX
₹ 2456 (Incl. of all taxes)
₹ 2081 + ₹ 375 GST
MRP ₹3275
FR-1/4"
FR-1/2"
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 1.5 KG
Function Air Filter Regulator Combination Unit
End Connection Screwed
Body Material Aluminium Die Cast
Valve Assembly & Seal Brass, NBR
Filter Element Bronze
Bowl Assembly Polycarbonate with Metal Bowl Guard
Media Air
Working Pressure 0.5 to 1.2 Bar
Regulator Construction Relieving Type
Recommended Lubricant Class 1 Turbine Oil (ISO VG32)
Model Port Size Gauge Port Fluid Temperature Filtration Rating Working Pressure Range Capacity of Condensate Fluid Nominal Flow Rate L/Min
W04-FST 1/2" BSP 1/4" Air 5 to 60deg C 40 µm 0.5 to 1.2 Bar 43 ml 3400
Condition: Under Standard Pressure
Function Filter Regulator Combination Unit
End Connection Screwed
Body Material Aluminium Die Cast
Media Air
Working Pressure 0.5 to 1.2 Bar
View PDF

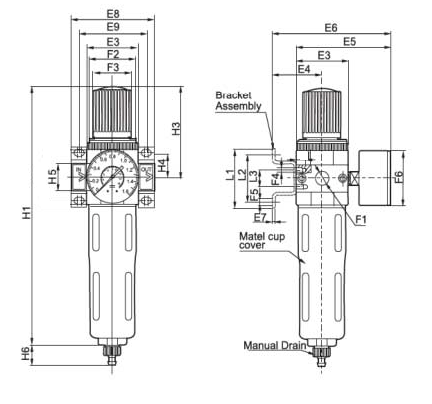

Port E3 E4 E5 E6 E7 E8 E9 F1 F2 F3 F4 F5 F6 L1 L2 L3 H1 H3 H4 H5 H6
1/2" 55 47 93 112 3 85 70 G 1/2" 52 X 1.5 50 M4 5.5 52 72 60 22 250 97 25.5 32 15
₹ 2456.00
In Stock
Quantity Price
3 - 8 2395
9 - 14 2334
15 - 20 2273
21+ 2211
Prepaid
Accepted
Part COD
Accepted
Full COD
Unavailable
Return
Accepted
As per return policy
