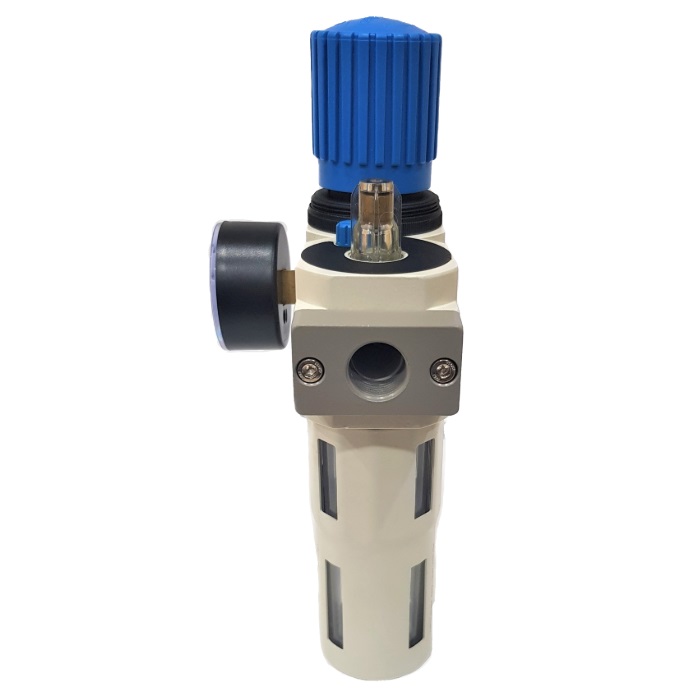

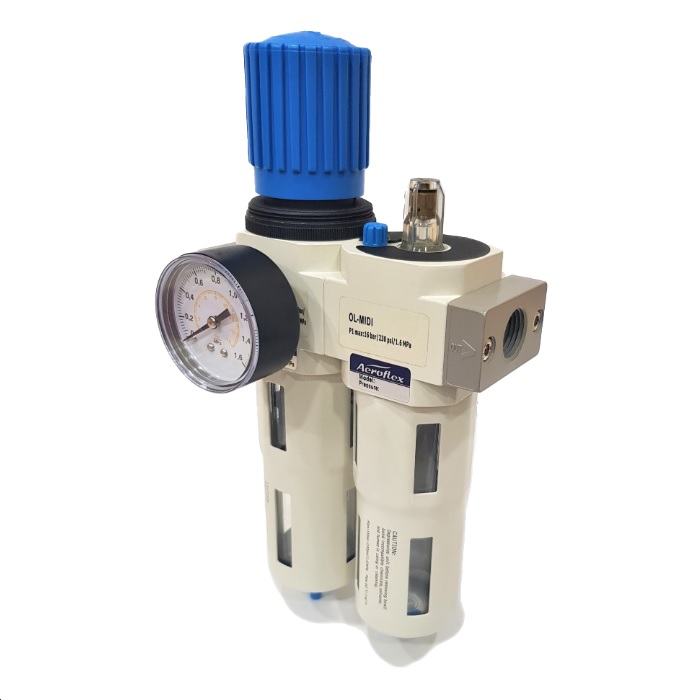

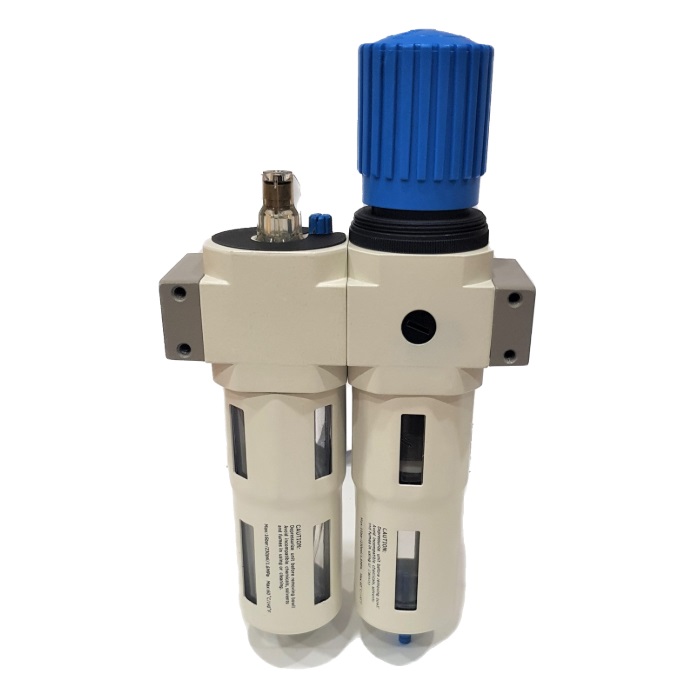

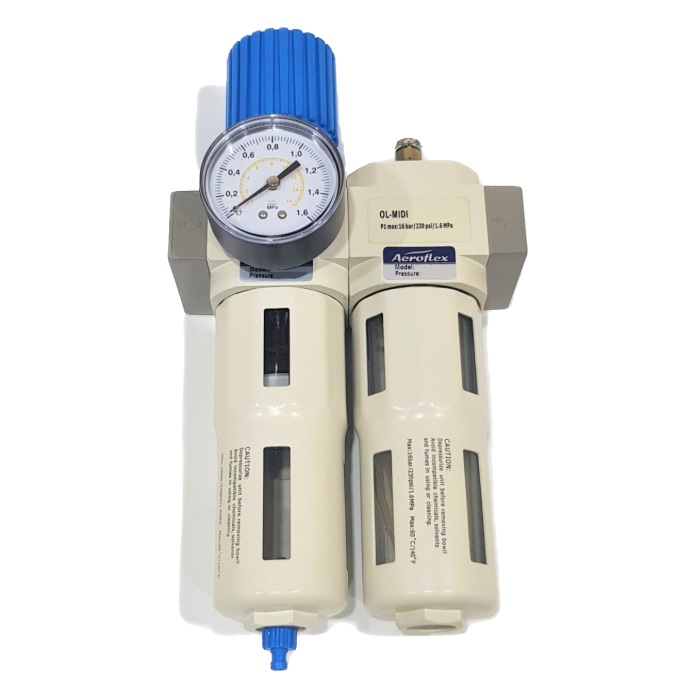

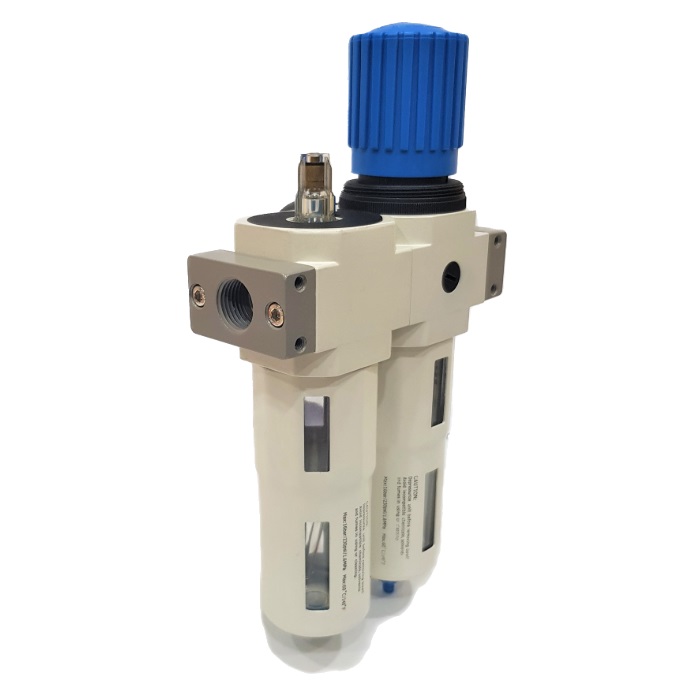

Aeroflex 1/4 Inch Pneumatic FRL Unit 2FRL02-FST - Air Filter Regulator and Lubricator Unit with Guard

Aeroflex 1/4 Inch Pneumatic FRL Unit 2FRL02-FST - Air Filter Regulator and Lubricator Unit with Guard

₹ 2434 (Incl. of all taxes)

₹ 2063 + ₹ 371 GST

MRP ₹3245

Select Options:

FRL-1/4"

FRL-1/2"

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	1 KG

Function	Air Filter Regulator & Lubricator Unit
End Connection	Screwed
Body Material	Aluminium Die Cast
Valve Assembly & Seal	Brass, NBR
Filter Element	Bronze
Media	Air
Bowl Assembly	Polycarbonate With Metal Bowl Guard
Working Pressure	0.5 to 1.2 Bar
Regulator Construction	Relieving Type
Recommended Lubricant	Class 1 Turbine Oil (ISO VG32)

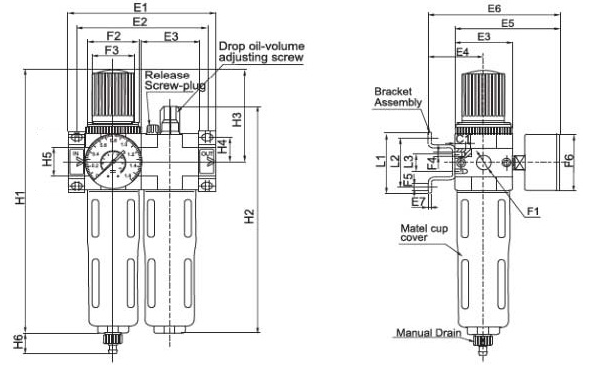

Model	Port Size	Gauge Port	Fluid	Temperature	Filtration Rating	Working Pressure Range	Capacity of Condensate Fluid	Nominal Flow Rate L/Min*
2FRL02-FST	1/4" BSP	1/8"	Air	5 to 60deg C	40 µm	0.5 to 1.2 Bar	22ml	1000

Condition: Under Standard Pressure

Function	Filter Regulator & Lubricator Unit
End Connection	Screwed
Body Material	Aluminium Die Cast
Max. Operating Pressure	16 Bar
Media	Compressed Air
Working Pressure	0.5 to 1.2 Bar
