  • Uflow 1.1/2 Inch / 40mm SS304 Pneumatic Ball Valve Flanged End with Double Acting Actuator Solenoid Valve 24v AC & Limit Switch
Silverton Eco Paper
thumb1 thumb1

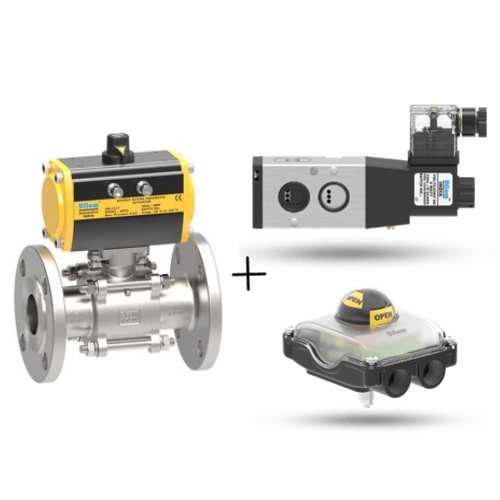

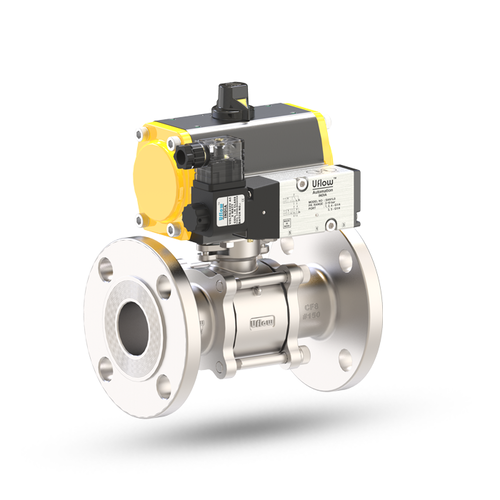

Uflow 1.1/2 Inch / 40mm SS304 Pneumatic Ball Valve Flanged End with Double Acting Actuator Solenoid Valve 24v AC & Limit Switch

Brand UFLOW
₹ 13272 (Incl. of all taxes)
₹ 11247 + ₹ 2025 GST
MRP ₹16590
1/2"
3/4"
1"
1.1/4"
1.1/2"
2"
2.5"
3"
4"
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 10.5 KG
PNEUMATIC ROTARY ACTUATOR
BODY Aluminum extruded, hard-anodized corrosion resistance
DESIGN Compact, Maintenance-free, Wear proof aluminum free Rack & Pinion design
PERFORMANCE Low air consumption with max. Torque
OPERATION Finer teeth module for Smooth traveling & jerk-free sliding
BALL VALVE
BODY Valve / stem / Ball - SS304(CF8) - Flanged End
BORE Full port
DESIGN STANDARD ASME B16.10, ASME B16.25, ASME B16.34 ASME B16.5, API 598, BS EN ISO 17292, ISO 5211
PERFORMANCE Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque
LIMIT SWITCH
DESIGN Compact & LightWeight
INDICATOR Indication Dome inbuilt with transparent cover for open/close indication
PROTECTION Weatherproof Limit Switch
TEMPERATURE -20 degree C to 80 degree C
CONTACT 1NO-NC / 2NO-NC options available
NAMUR SOLENOID VALVE
DESIGN Compact & Cartridge Type design for long life
POWER Lower Power Consumption
VOLTAGES Wide range of coil voltage available - 230v AC / 24v DC / 110v AC / 12v DC / 24v Ac
CYCLE Fast response time max. 1500 cycle/min
ATTACHMENT Manual Override Available

NOTE: Additional configurations and material options available on request.

Model No. JC6AD50-24VAC-LS
Body Material CF8 (SS304)
Pipe Size (Inch) 1.1/2"
End Connection Flanged End
Pressure Class #150
Seal & Seat PTFE
Media Temp. -30 Deg to 200 Deg
Accessories Limit Switch & Solenoid Valve 24VAC

* Note – Body material CF8M (SS316) available on request.

Size Valve - 1-1/2" BSP, Actuator - 50
End Connection Flanged End
Pressure Class #150
Design 3 Piece Twinseal ball valve
Bore Full Bore
MoC Body / Stem / Ball - All SS304 (CF8)
Seat PTFE
Accessories 1 With Limit Switch
Accessories 2 With Solenoid Valve (24v AC)
View PDF

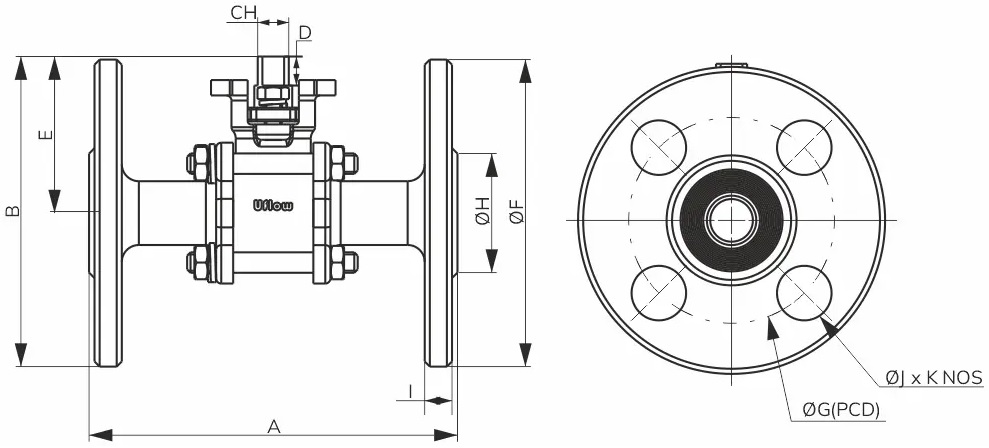

Model No. Pipe Size A B CH D E F G H I J K ISO 5211
JC6D 1.1/2" 165 136 11 13 73.5 125 98.5 73 12.5 16 4 F05
