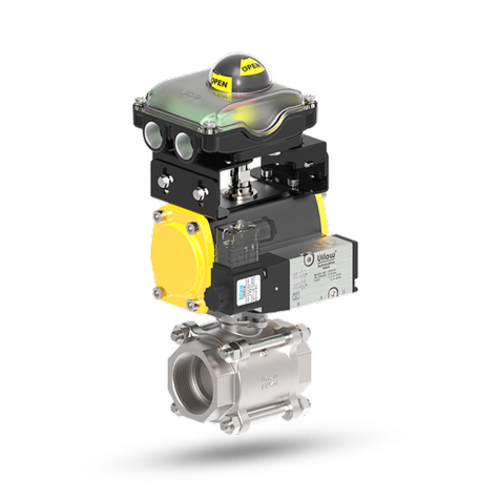

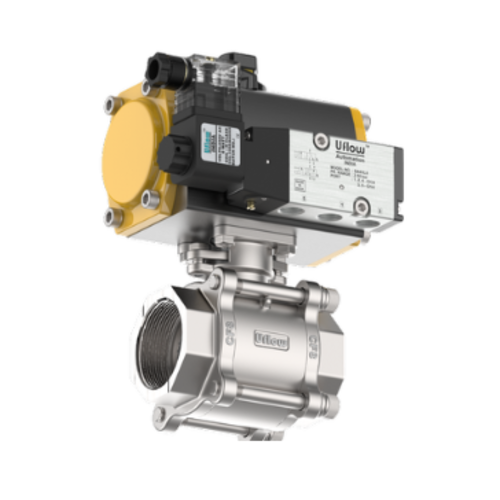

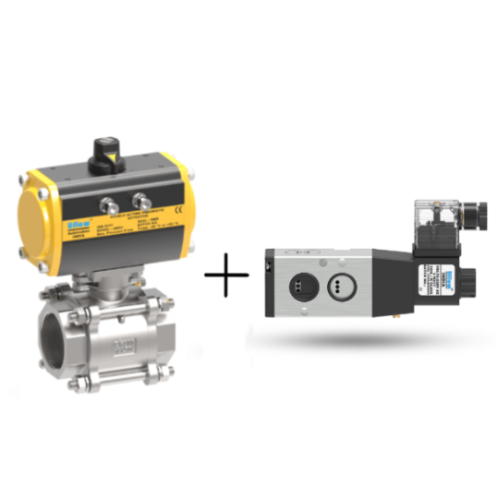

Uflow 1.1/4 Inch / 32mm SS304 Pneumatic Ball Valve with Double Acting Actuator and Solenoid Valve 24v DC

Uflow 1.1/4 Inch / 32mm SS304 Pneumatic Ball Valve with Double Acting Actuator and Solenoid Valve 24v DC

Brand UFLOW

₹ 7304 (Incl. of all taxes)

₹ 6190 + ₹ 1114 GST

MRP ₹9129

Select Options:

1/2"

3/4"

1.1/4"

1.1/2"

2.5"

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	3.5 KG

PNEUMATIC ROTARY ACTUATOR
BODY	Aluminum extruded, hard-anodized corrosion resistance
DESIGN	Compact, Maintenance-free, Wear proof Aluminum Free Rack & Pinion design
PERFORMANCE	Low air consumption with max. Torque
OPERATION	Finer teeth module for Smooth traveling & jerk-free sliding
BALL VALVE
BODY	Valve / stem / Ball - SS304(CF8) - Screwed End
BORE	Full port
DESIGN STANDARD	ASME B16.10, ASME B16.25, ASME B16.34 ASME B16.5, API 598, BS EN ISO 17292, ISO 5211
PERFORMANCE	Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque
NAMUR SOLENOID VALVE
DESIGN	Compact & Cartridge Type design for long life
POWER	Lower Power Consumption
VOLTAGES	Wide range of coil voltage available - 230v AC / 24v DC / 110v AC / 12v DC / 24v Ac
CYCLE	Fast response time max. 1500 cycle/min
ATTACHMENT	Manual Override Available

NOTE: Additional configurations and material options available on request.

* Note – Body material CF8M (SS316) available on request.
