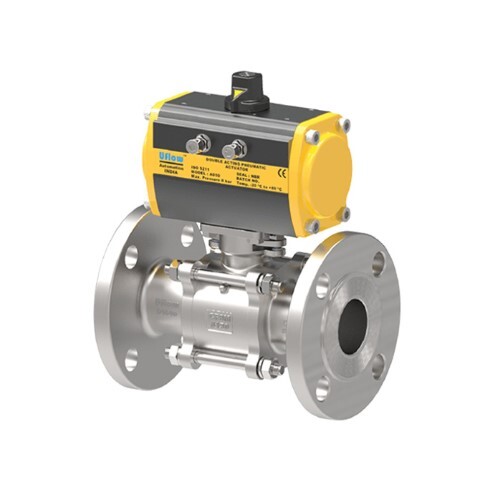

Uflow 3 Inch / 80mm SS304 Pneumatic Ball Valve Flanged End with Double Acting Actuator

Brand UFLOW
₹ 22845 (Incl. of all taxes)
₹ 19360 + ₹ 3485 GST
MRP ₹28556
1/2"
3/4"
1"
1.1/4"
1.1/2"
2"
2.5"
3"
4"
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 23 KG
PNEUMATIC ROTARY ACTUATOR
BODY Aluminum extruded, hard-anodized corrosion resistance
DESIGN Compact, Maintenance-free, Wear proof Aluminum Free Rack & Pinion design
PERFORMANCE Low air consumption with max. Torque
OPERATION Finer teeth module for Smooth traveling & jerk-free sliding
BALL VALVE
BODY Valve / stem / Ball - SS304(CF8) - Flanged End
BORE Full port
DESIGN STANDARD ASME B16.10, ASME B16.25, ASME B16.34, ASME B16.5, API 598, BS EN ISO 17292, ISO 5211
PERFORMANCE Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque

NOTE: Additional configurations and material options available on request.

Model No. JCADAD80
Body Material CF8 (SS304)
Pipe Size (Inch) 3"
End Connection Flanged End
Pressure Class #150
Seal & Seat PTFE
Media Temp. -30 Deg to 200 Deg

* Note – Body material CF8M (SS316) available on request.

Size Valve - 3" BSP, Actuator - 80
End Connection Flanged End
Pressure Class #150
Design 3 Piece Twinseal ball valve
Bore Full Bore
MoC Body / Stem / Ball - All SS304 (CF8)
Seat PTFE
View PDF

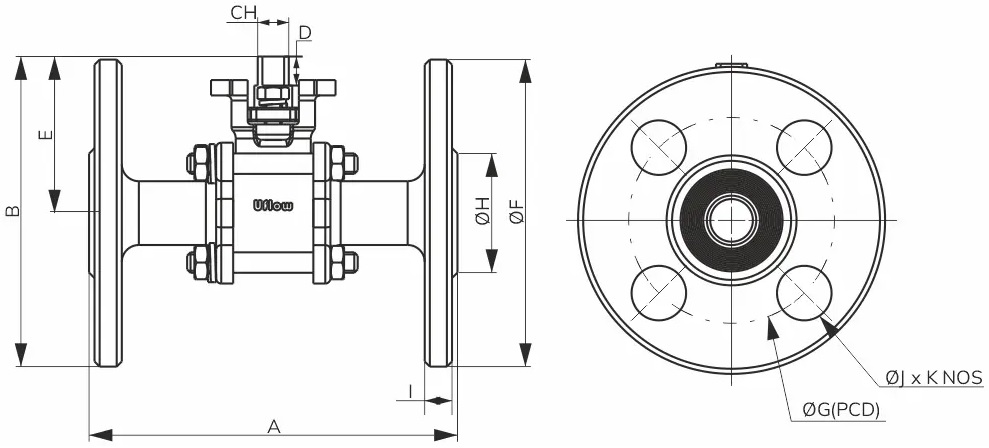

Model No. Pipe Size A B CH D E F G H I J K ISO 5211
JCAD 3" 203 214.5 17 16.5 119.5 190 152.5 127 17.5 19.5 4 F07
